Item Description

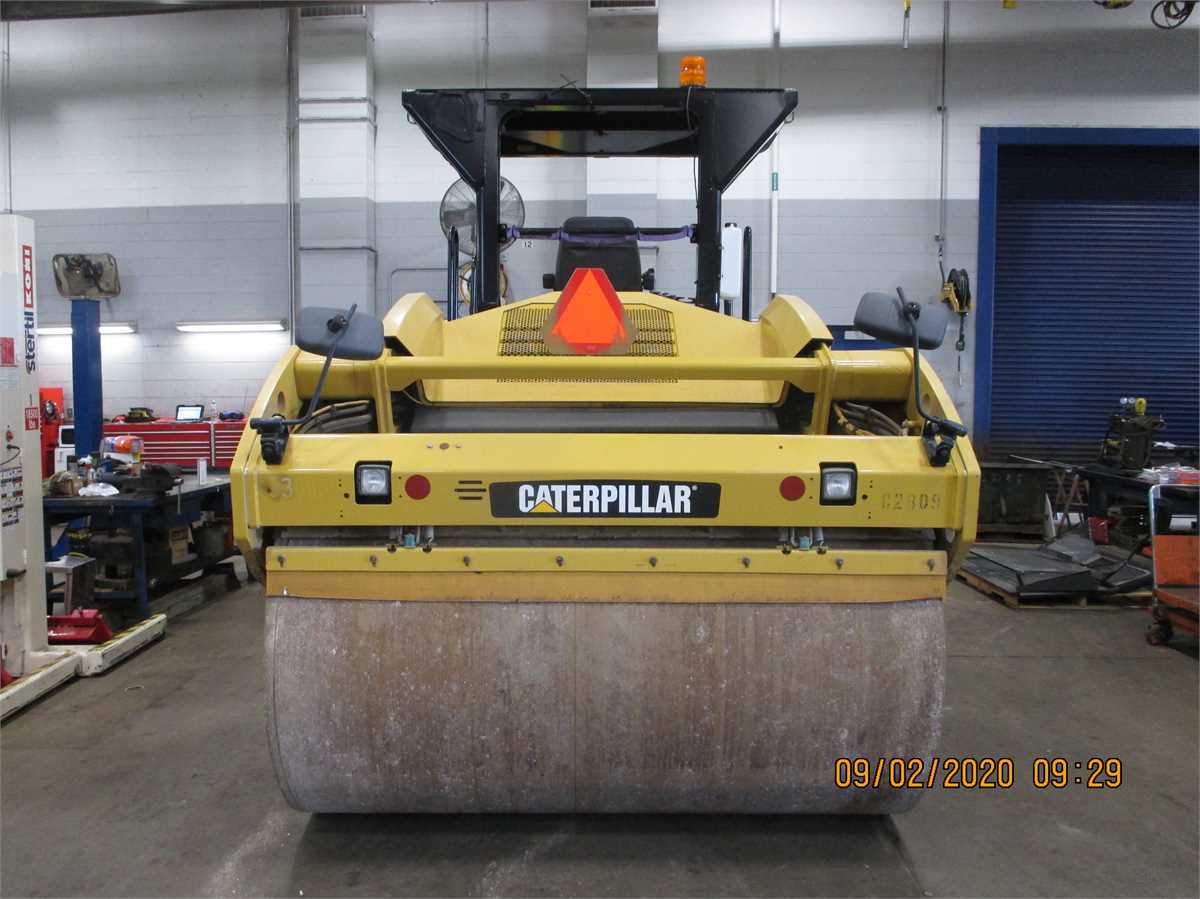

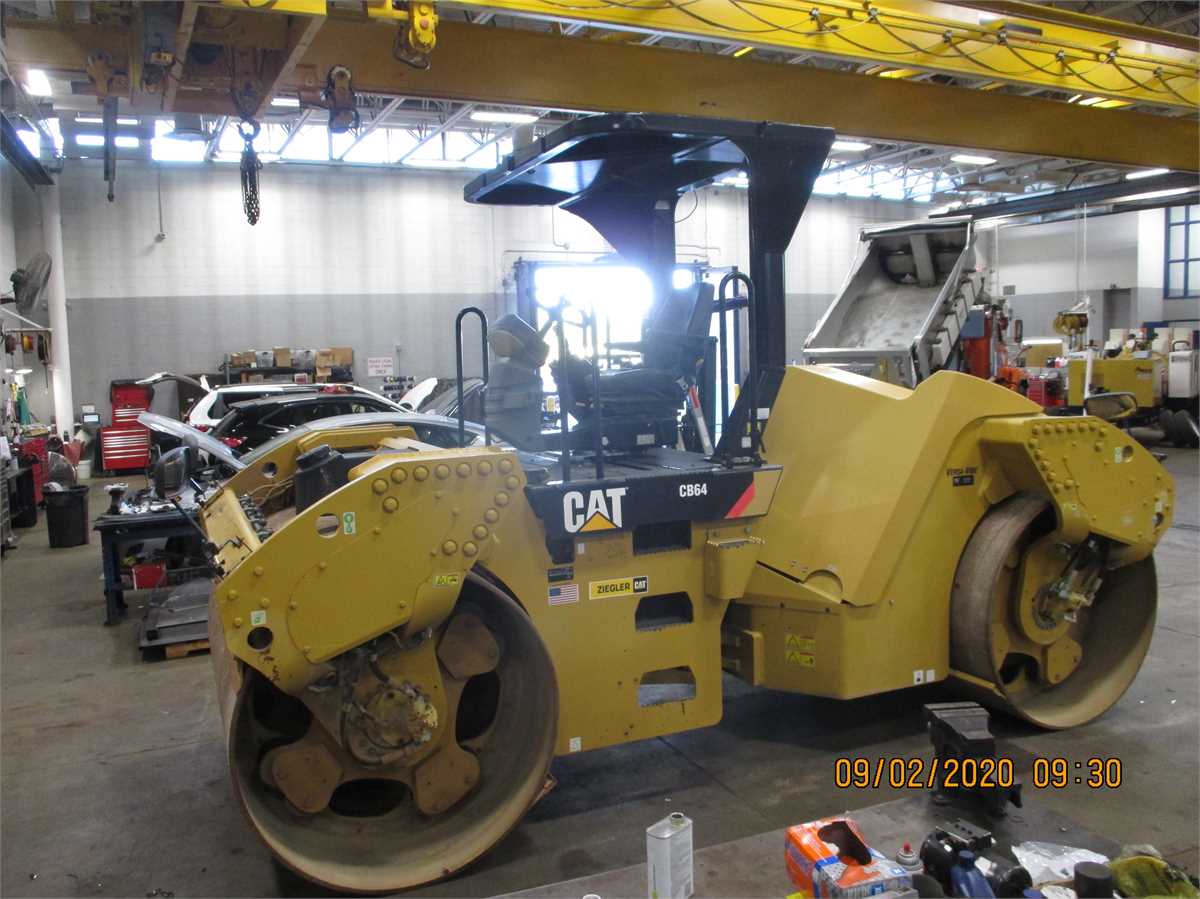

2015 CAT CB64 Roller. Engine has 1297 hours. Roller is inreally good shape and has had very little use since October 2018
POWERTRAIN
Cat C4.4 ACERT Engine
(137HP /102kW, four cylinder
turbo-charged)
Cyclonic air cleaner
Water separtor
ELECTRICAL
12-volt electric starting
SO-ampere alternator
Maintenance free battery - 950 CCA
Halogen working lights • bumper mounted
(2 front-facing and 2 rear-facing)
OPERATOR ENVIRONMENT
Isolated ROPS/FOPS structure
Platform handrails / guardrails
Four heavy-duty isolation mounts
Power steering
Adjustable suspension, vinyl seat
3" (76mm) wide retractable seat belt
Adjustable tilt-steering column/instrument
panel
Sliding, rotating seat
Lockable, vandalism guard for
instrument panel
Indicator light package with audible
warning alarm for: hydraulic oil
COOLING
Premixed 50% concentration of Extended
Life Coolant with freeze protection
DRUMS
Smooth drum - 84" (2130 mm) wide x 51"
(1300 mm) diameter
5 Amplitudes with single vibe frequency
OTHER STANDARD EQUIPMENT
Locking engine enclosure
Sealed-for-life hitch bearings
Sight gauges: hydraulic tank Level, and
air restriction indicator
Cap lock for hydraulic tank
Articulated frame with safety lock
Transport tie-down and lift points
MACHINE SPECIFICATIONS
CB64 VIBRATORY COMPACTOR DCA-1
281-6815 PLATFORM, ROPS/FOPS

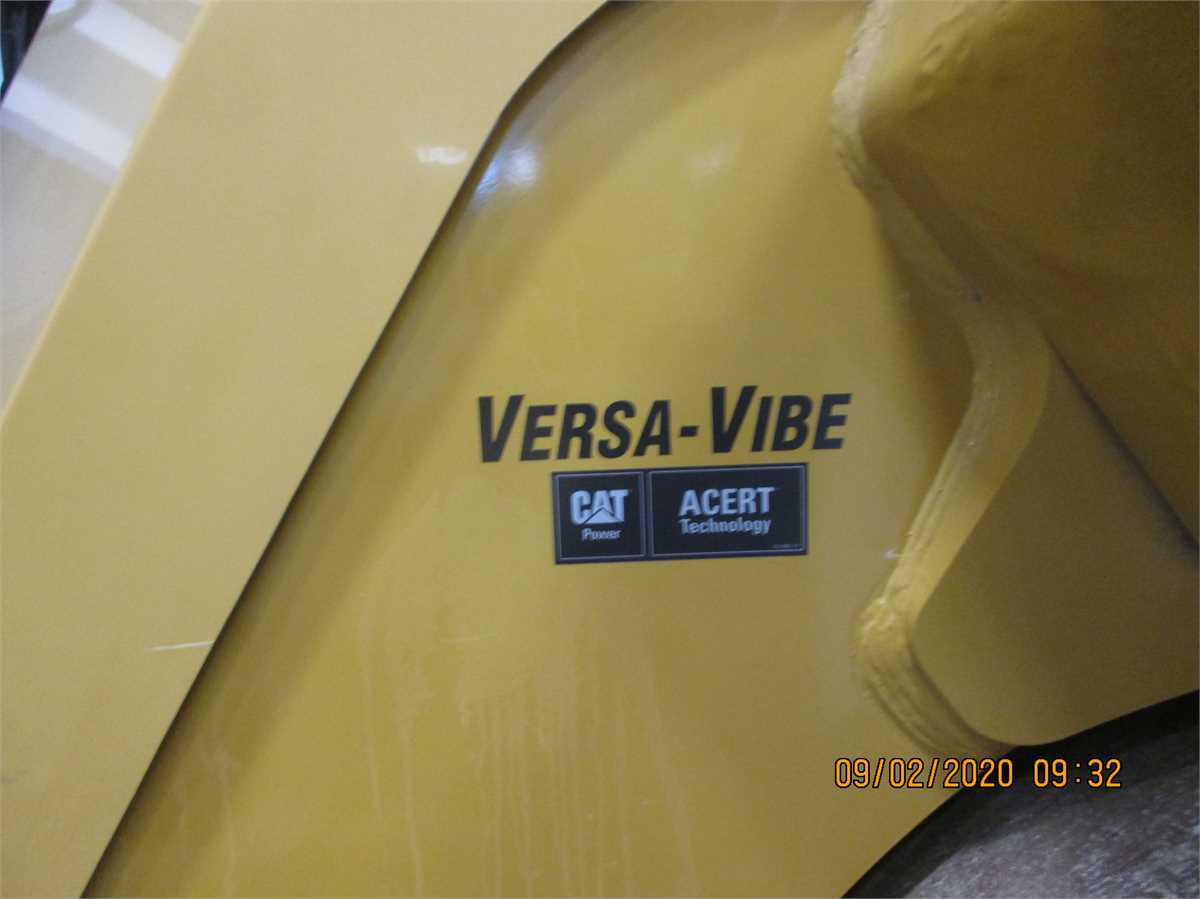

281-9243 SYSTEM, VERSA-VIBE
287-8381 HITCH
300-2654 LIGHTS, WORKING
329-8044 OIL, HYDR, FACTORY FILLED
Ultra clean fuel filter with integrated
electric prime pump
Two-speed electric throttle switch
Dual braking systems (service and parking)
Two-speed hydrostatic transmission
Backup alarm and forward warning horn
Product Link Ready
Cat Engine and Vehicle ECM's -
ET compatible
pressure, hydraulic oil temperature,
engine oil pressure, engine coolant
temperature, glow plugs, and service
fault indicator.
Fuel level gauge
Water level gauge

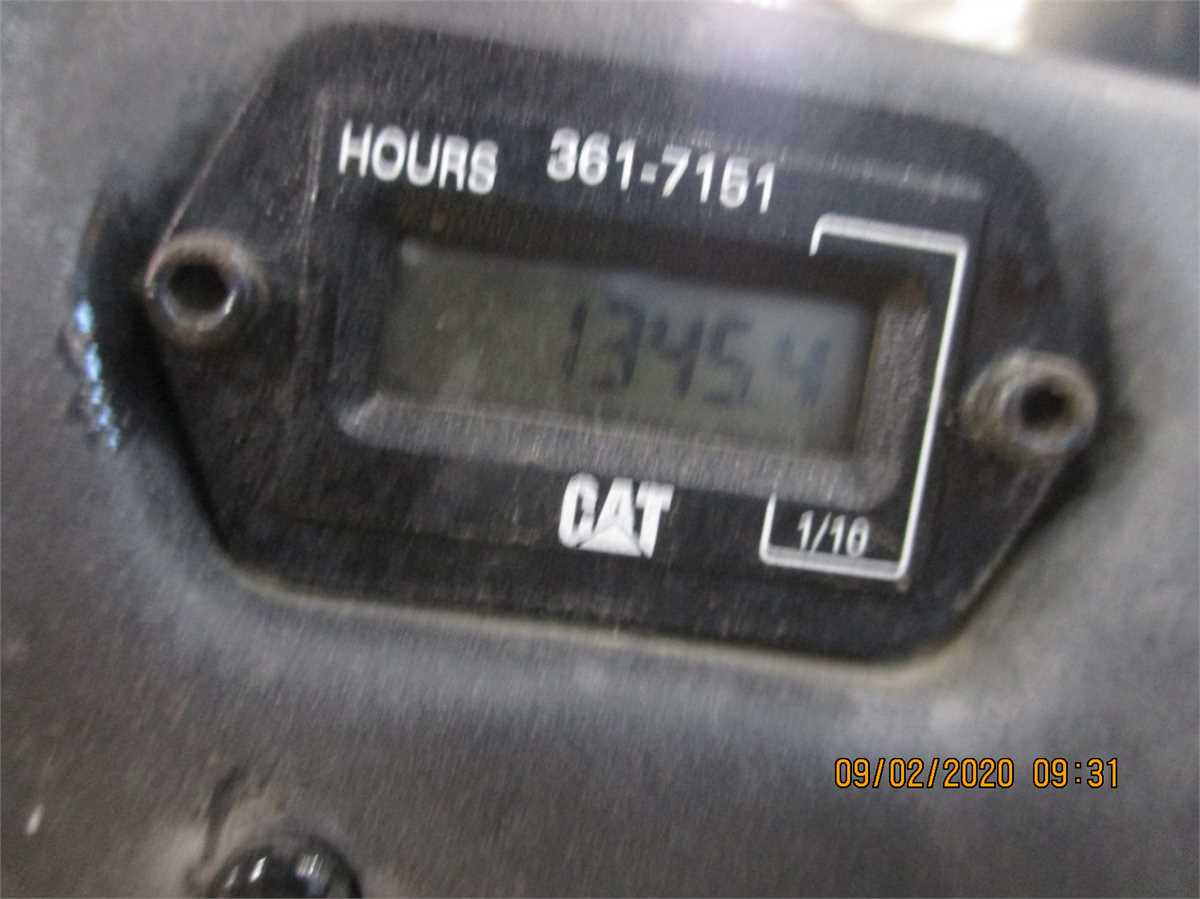

Service hour meter
Automatic speed control
Auto-vibe with adjustable on/off control
Vibe tachometer
Speedometer
Externally mounted rear view mirrors,
quantity of 4
to -37C (-35F)
Front and Rear self adjusting scraper
blades
Pod-style eccentric weight housing
50 gal (191 L) fuel tank capacity
291 gal (1100 L) water tank capacity
Quick-connect hydraulic pressure test
ports
SOS ports: engine, hydraulic and
coolant
298-3726 MATS, WATER DISTRIBUTION
334-0847 FREEZE PROTECTION, ROPS/FOPS
LIGHT, ROTATING BEACON
Ambient and Surface Temp Sensor
Lights, Nightime Operation
