Duplo Booklet Maker DBM-120, Trimmer DBM-120T & Collator DFC-12

Listing Number: 26916797 | Philadelphia, PA US | Delaware Valley Regional Planning Commission 0 Seller's Other Auctions

Bidding on this item has ended

Missed out on this deal?

Get Notified When New Deals Near You Are Listed!

Unsubscribe Anytime

Auction Ended:

Final Bid:

$1,000.00

Bids:

1 Bids

Auction Details

Starting Bid: $1,000.00
Current Price: $1,000.00
Buy Now Price $0.00
No Reserve
Buyer's Fee: 9.00 %
Start Date
End Date  [Extended]
Bid History 1 Bids
High Bidder t******7
Page Views 352

Payment Details

Please note that all property is offered for sale “AS IS, WHERE IS, WITH ALL FAULTS" condition, with no expressed or implied guarantees or warranties whatsoever, unless required by law.All sales are final. Most items offered for sales are used and may contain defects not immediately detectable. Bidders may inspect the property prior to making an offer/bid.Payment in full is due at the time of removal. Acceptable forms of payment are certified bank or Cashier’s check made out to Delaware Valley Region Planning Commission. All items must be removed within 7 business days from the time and date of the Commission’s award of successful offer/bid. Purchases will be released only upon receipt of payment as specified. Successful bidders are responsible for all loading and removal and any and all property awarded to them from the place where the property is located. Property may be removed between the hours of 9:00 a.m. and 3:00 p.m., Monday through Friday excluding legal holidays. For additional information or to arrange payment, please contact Paul Smith at either psmith@dvrpc.org or 215-238-2877.

Item Description

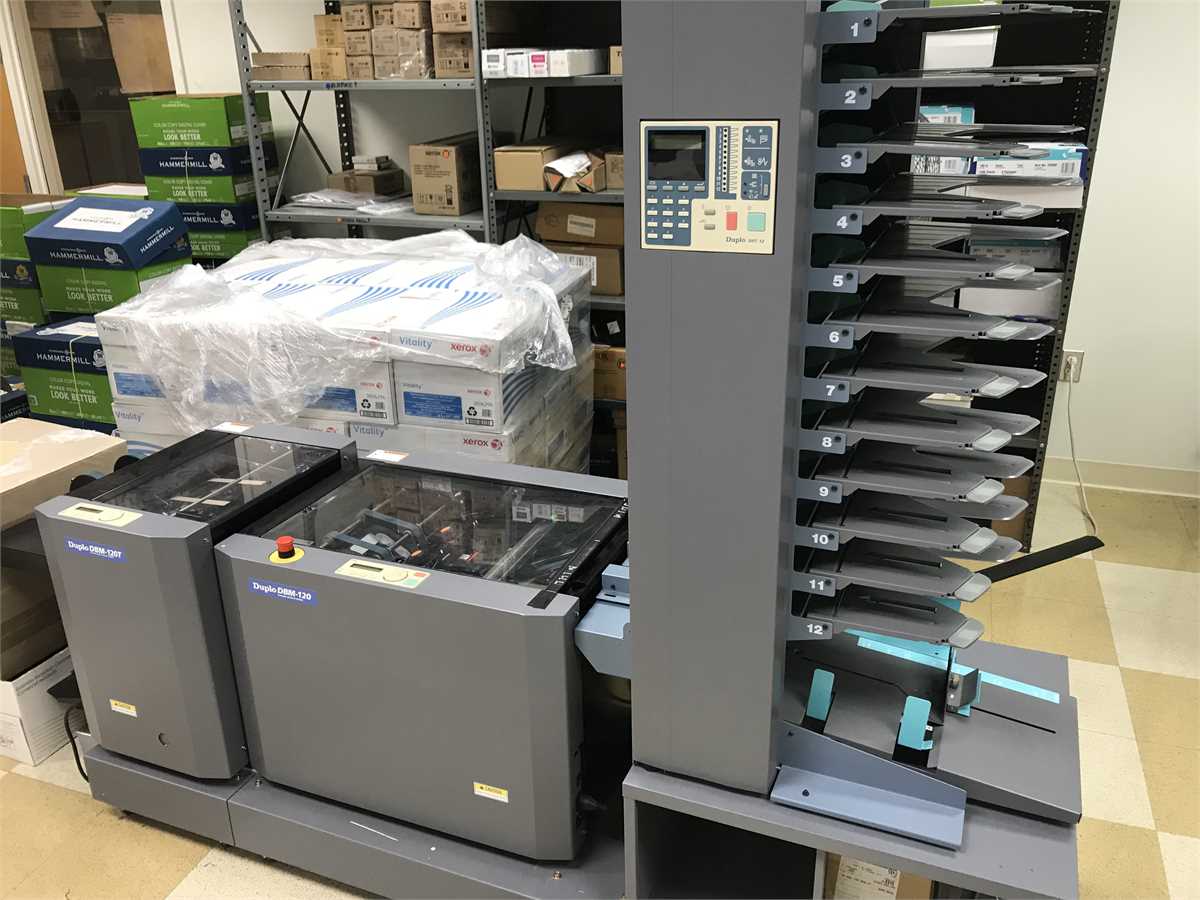

These three pieces are together form an automatic Duplo booklet-making system - Duplo DBM 120 (folder and stapler), Duplo DBM-120T (trimmer) and Duplo DFC-12 (collator) and are sold together for one price. The DBM-120 produces up to 2,400* professional booklets an hour. The DBM-120T Trimmer is designed to be used in-line with the DBM-120 for precise and consistent face trimmed booklets containing up to 80 pages. The DFC-12 is the feeding system that allows for collating and creating booklets.

Duplo DBM 120 Bookletmaker Specifications

  • Paper Size (Min./Max.): 7.87" x 7.87" to 12.60" x 17.72"
  • Corner Stapling Paper Size: 8.5" x 11"
  • Side Stapling Paper Size (Min./Max.): 5.47" x 7.87" to 9.09" x 12.60"
  • Paper Types: Bond, NCR, some coated and card stocks
  • Speed: Up to 2,400* sets per hour (10 sheets of 8.5" x 11") Paper Capacity: Up to 20 sheets of 20 lb.
  • Number of Staple Heads: 2
  • Staple Head Positions: 5
  • Pre-set Paper Sizes for Automatic Set-up: 8.5" x 11", 8.5" x 14", 11" x 17"
  • Programmable Memory Settings: 10 pre-set and 3 custom paper sizes
  • Stapler Capacity: 5,000 staples
  • Power Consumption: 120V 60Hz 2A
  • Dimensions (L x W x H): 28" x 22" x 23"
  • Weight: 183 lbs.

Duplo DBM 120T Trimmer Specifications

  • Min./Max. Booklet Size (before trim): 3.94" x 7.87" to 8.86" x 12.60"
  • Paper Capacity: Up to 20 folded sheets of 20 lb.
  • Speed: Up to 2,400* sets per hour
  • Pre-set Paper Size: 8.5" x 11", 8.5" x 14", 11" x 17"
  • Trim Margin: Up to 0.79" (3mm default cut)
  • Power Consumption: 120V 60Hz 2.1A or 220 - 240V AC 1.5A
  • Dimensions (LxWxH): 15" x 22" x 23" (37" x 22" x 23" with conveyor)
  • Weight: 124 lbs

Duplo DFC-12 Collator Specifications

  • Number of Bins: 12
  • Paper Size (Min./Max.): 5.83” x 8.27” to 12.6” x 17.72”
  • Feed Bin Capacity: 1.1”
  • Receive Bin Capacity: 2.76”
  • Speed: Up to 65 sets per minute or 3,900 sets per hour
  • Programming: Alternating Program (link 2 bins), Interleave Program (slip sheet), Block Program
  • Paper Feed Bin Detections: Misfeed, double-feed, paper jam
  • Error Detections:  Paper feed error, conveyance cover open/close, paper receive bin full, bin empty, misfeed, double-feed, paper jam, downstream processing device error, number of interleaves error
  • Power Consumption:  00 - 240V AC 50/60Hz 2.8 - 1.2A
  • Dimensions (LxWxH): 12-bin 33” x 22” x 45”
  • Weight: 165 lbs.



*Dependent upon connected devices and paper weight and size.

Date of manufacture is unknown. But purchased in 2005. It's in good working order, and taken out of service in February 2019.



Additional information on this Auction

Will Item results be voted on No
Will you ship this item No. Pickup only.
In person item inspection information Contact Paul Smith at either psmith@dvrpc.org or 215-238-2877 to schedule an appointment
Pickup Location Details 190 N. Independence Mall West, 8th Floor, Philadelphia, PA 19106
